The 3.5mm plug is everywhere, but there's lots of different types, leading to compatibility problems. This article explains them all and what it calls the "misconnection epidemic".

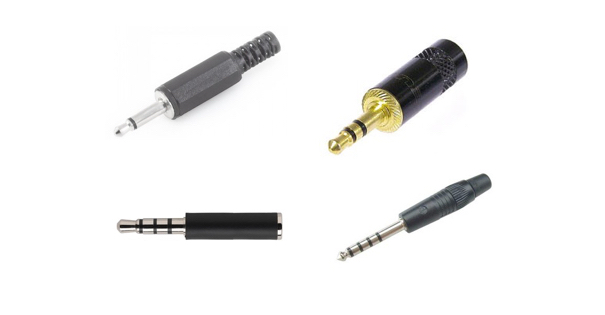

There are at least four different varieties of 3.5 mm plugs and jacks, each with its own purpose and application. In the last 60 days, several friends have had severe problems by not understanding the differences and innocently plugged the inappropriate plug into the jack on their recording device, which caused them severe problems. Shure is even including a special adapter with some of its latest MOTIV products to combat this misconnection epidemic. In this article, I explain and show them all, so you can get your desired result and avoid falling into the trap where my friends did.

TS/TRS/TRRS/TRRRS: Combating the misconnection epidemic by Allan Tépper - ProVideo Coalition

There are at least four different varieties of 3.5 mm plugs and jacks, each with its own purpose and application. In the last 60 days, several friends have had severe problems by not understanding the differences and innocently plugged the inappropriate plug into the jack on their recording...

www.provideocoalition.com



[eidairman1]

I helped another figure out to use a headphone+mic 2 separate cables from it, both plugs were trs, so got adapter to go to TRRS so that 1 cable could be used then another adapter to go from TRRS back to TRS for the PC.



[Retro]

You hero.



[eidairman1]

You hero.

We can Thank Creators of the 1/4 TRS in Telephony Switch boards, I studied another Website to learn about the trrs wiring layout.
